DatasheetCELLFLEX® 1/2" Low Loss Jumper with Outdoor Jacket - 4.3-10 Male Interface, 50cm

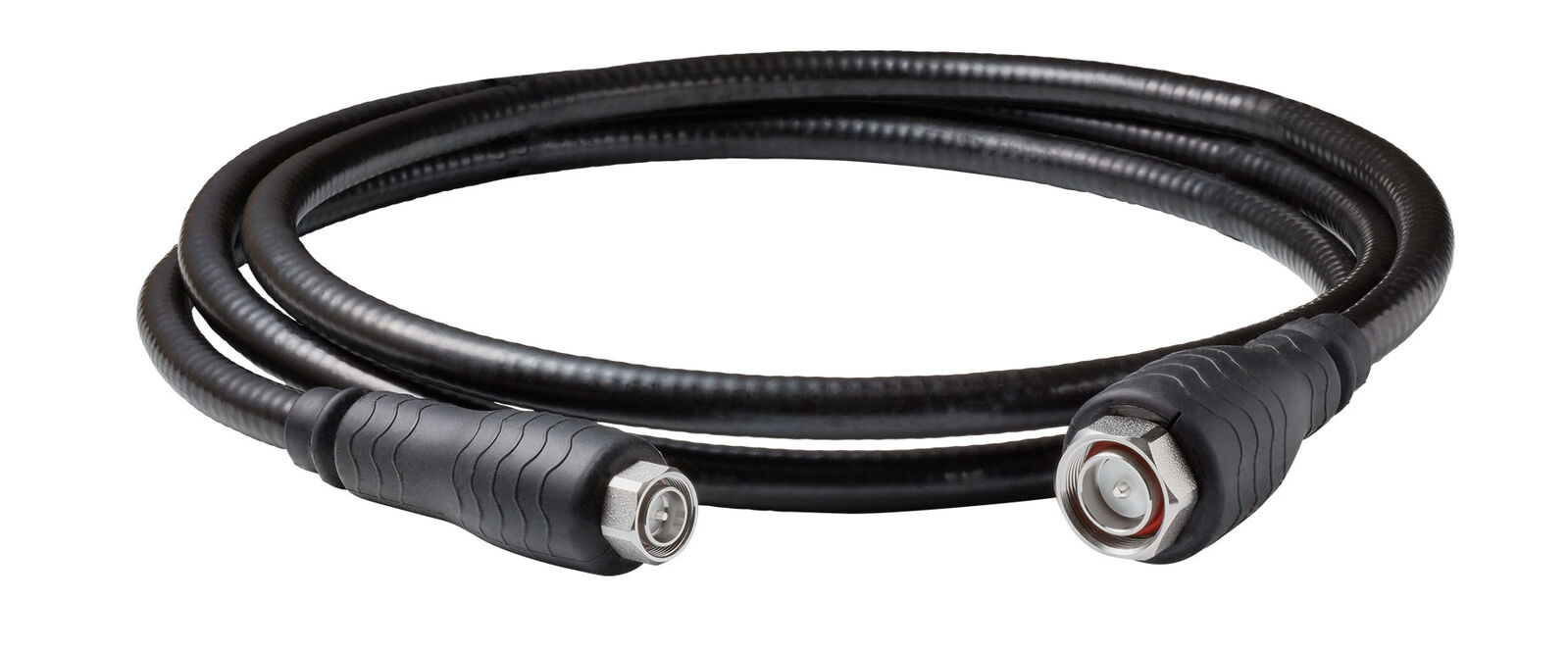

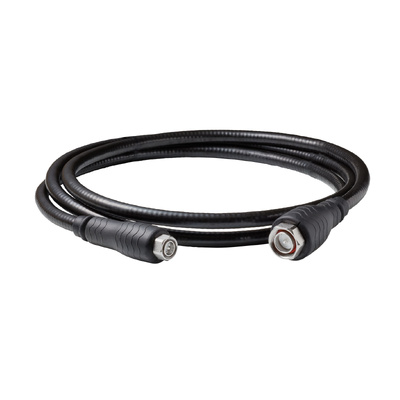

CELLFLEX® 1/2" Low Loss Jumper with Outdoor Jacket, 50cm
SKU: 21954
RFS CELLFLEX® Factory-Fit Jumpers are built for reliability in today’s high-performance wireless systems. Each jumper uses precision-engineered connectors that are soldered under tightly controlled industrial processes to deliver consistent, industry-leading performance. The connector design and production methods have been refined to achieve exceptionally low VSWR and outstanding passive intermodulation (PIM) levels.
To protect performance in the field, injection-moulded boots provide repeatable strain relief and a robust IP-rated seal. RFS facilities manufacture and stock all commonly required lengths, while custom assemblies can be supplied on request—each maintaining premium RF characteristics.
Available in Australia exclusively through Rojone Pty Ltd.
- Stable, premium VSWR with outstanding and consistent passive intermodulation (PIM) performance.
- Waterproof to IP68 for reliable outdoor operation.
- Compact 4.3-10 footprint enables tighter antenna/RRH spacing; right-angle variants available.
- Available with standard “J” or flame-retardant “JFN” jackets.
- RoHS (EU) and CRoHS (China) compliant; ANATEL-compliant jumpers available on request (suffix “-ANA”).
- Factory-terminated, soldered connectors using tightly controlled industrial processes for repeatable, high performance.
- Injection-moulded boots provide repeatable strain relief and an additional environmental seal.
Product
- Series: CELLFLEX® Factory-Fit Jumper (Premium)
- Model Family: JUMPER-L12-FFP (1/2" Low Loss Foam)
- Typical Use: Antenna/RRH jumpers for high-performance wireless systems
Construction
- Cable type: 1/2" Low Loss Foam (LCF)
- Dielectric: Foam Polyethylene
- Gasket: Silicone rubber
- Jacket: Black, halogen-free polyethylene (IEC 60754-1/-2)
- Minimum bend radius: 125 mm (5 in)
Connector Options
7-16 DIN, 4.3-10, N-Type, and NEX10 in straight and right-angle variants. Injection-moulded booted versions available.
Length code “XXXX” indicates ordered jumper length.
| 21954 | |
| Brand | Radio Frequency Systems (RFS) |
Electrical Specification
- Passive intermodulation (3rd-order): ≤ −159 dBc (static & dynamic), −161 dBc typical
- Peak power rating: 8.1 kW
- RF peak voltage: 900 V
Typical VSWR (0–10 m jumpers)
| Frequency (MHz) | Straight/Straight (VSWR) | Right-Angle/Right-Angle (VSWR) |
|---|---|---|
| 0–1000 | ≤ 1.08 | ≤ 1.08 |
| >1000–1700 | ≤ 1.08 | ≤ 1.10 |
| >1700–2200 | ≤ 1.08 | ≤ 1.10 |
| >2200–2700 | ≤ 1.10 | ≤ 1.12 |
| >2700–3800 | ≤ 1.15 | ≤ 1.20 |
| >3800–5000 | ≤ 1.20 | ≤ 1.25 |
| >5000–6000 | ≤ 1.30 | ≤ 1.30 |
Typical VSWR (10–20 m jumpers)
| Frequency (MHz) | Straight/Straight (VSWR) | Right-Angle/Right-Angle (VSWR) |
|---|---|---|
| 0–1000 | ≤ 1.08 | ≤ 1.08 |
| >1000–1700 | ≤ 1.10 | ≤ 1.14 |
| >1700–2200 | ≤ 1.10 | ≤ 1.14 |
| >2200–2700 | ≤ 1.12 | ≤ 1.14 |
| >2700–3800 | ≤ 1.15 | ≤ 1.25 |
| >3800–5000 | ≤ 1.25 | ≤ 1.28 |
| >5000–6000 | ≤ 1.30 | ≤ 1.38 |
Mechanical
- Minimum bend radius: 125 mm (5 in)
- Connector formats: 7-16 DIN, 4.3-10, N-Type, NEX10 (straight and right-angle)
Environmental
- Sealing: IP68
- Installation temperature: −40 to +60 °C
- Operating temperature: −50 to +85 °C
- Storage temperature: −70 to +85 °C
- Compliance: RoHS (EU), CRoHS (China); ANATEL options on request
Material Specifications & Mechanical / Environmental
- Dielectric: Foam Polyethylene
- Gasket: Silicone rubber
- Jacket: Black polyethylene, halogen-free (IEC 60754-1/-2)
- Boots: Injection-moulded environmental boots (on booted variants)
Warranty
Rojone supplies RFS products in Australia with the manufacturer’s standard warranty. Warranty coverage is subject to the original RFS terms and any conditions stated on the purchase document.
- Warranty applies to defects in materials and workmanship under normal use.
- Remedies typically include repair, replacement, or credit at the manufacturer’s discretion.
- Your rights under the Australian Consumer Law (ACL) are in addition to any manufacturer’s warranty.
For the full warranty statement or to initiate a claim, please contact Rojone.
